Requirements Management

Requirements in Cascadia PLM help you capture, track, and verify product requirements throughout the development lifecycle. Link requirements to parts to ensure complete traceability from customer needs to implementation.

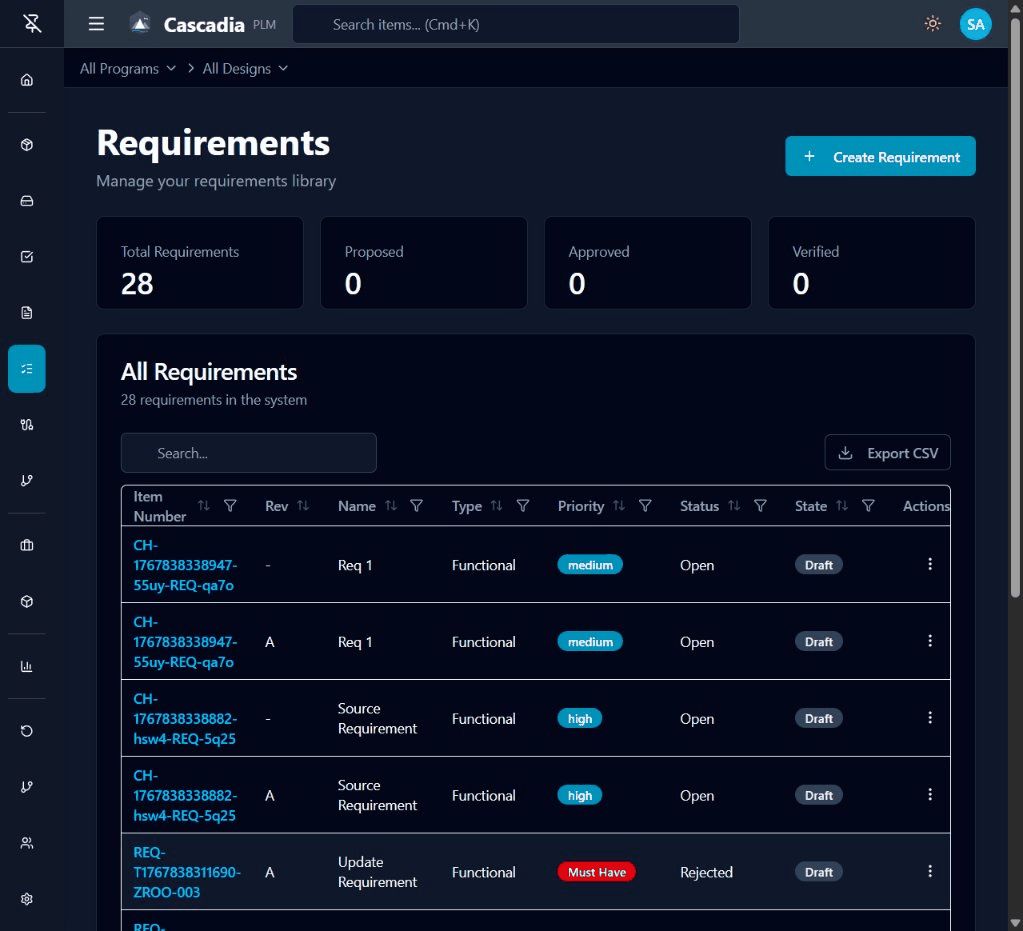

The Requirements page showing all requirements with priority, status, and lifecycle state.

Requirements List Overview

The Requirements page displays all requirements with summary statistics and filtering options.

Summary Statistics

At the top of the page, you'll see four summary cards:

Statistic	Description
Total Requirements	Count of all requirements in the system
Proposed	Requirements in initial proposal state
Approved	Requirements that have been approved
Verified	Requirements that have been verified

Table Columns

The requirements table shows:

Column	Description
Item Number	Unique identifier (e.g., REQ-T1767...)
Rev	Current revision letter
Name	Descriptive name of the requirement
Type	Category (Functional, Performance, etc.)
Priority	Importance level badge (Must Have, High, Medium, Low)
Status	Verification status (Open, Approved, Rejected, etc.)
State	Lifecycle state (Draft, In Review, Released)
Actions	Menu for edit, delete, and other actions

Filtering and Search

• Program/Design Filter: Use the breadcrumb dropdowns to filter by program and design
• Search: Use the search box to find requirements by item number or name
• Column Sorting: Click column headers to sort ascending/descending
• Export: Click Export CSV to download requirements data

Creating a Requirement

1. Navigate to Requirements in the sidebar
2. Click + Create Requirement in the top right
3. Select a workspace or create a new one
4. Fill in the requirement details

Required Fields

Field	Description
Design	The design this requirement belongs to
Item Number	Unique identifier (auto-generated)

Core Fields

Field	Description
Name	Descriptive name (e.g., "System shall support 100 concurrent users")
Description	Detailed requirement statement
Type	Requirement category (see types below)
Priority	Importance level
Status	Verification status
Source	Origin of the requirement (customer, regulatory, internal)
Acceptance Criteria	How to verify the requirement is met

4. Click Create Requirement to save

Requirement Types

Type	Description	Examples
Functional	What the product must do	"System shall authenticate users"
Performance	Speed, capacity, efficiency	"Response time < 2 seconds"
Interface	Integration and connectivity	"Shall communicate via REST API"
Safety	Safety-critical requirements	"Emergency stop within 100ms"
Regulatory	Compliance requirements	"Shall meet FDA 21 CFR Part 11"
Environmental	Operating conditions	"Operate at -20°C to +50°C"

Priority Levels

Priority indicates the importance of implementing the requirement:

Priority	Description	When to Use
Must Have	Required for release	Non-negotiable requirements
High	Critical for success	Important customer needs
Medium	Desired feature	Standard requirements
Low	Nice to have	Future enhancements

Status vs State

Cascadia distinguishes between two different concepts:

Status (Verification Status)

The Status field tracks whether the requirement has been verified:

Status	Meaning
Open	Not yet verified
Approved	Requirement approved for implementation
Rejected	Requirement not approved
Verified	Testing confirms requirement is met

State (Lifecycle State)

The State field tracks the requirement's position in the lifecycle workflow:

State	Meaning
Draft	Initial creation, can be edited freely
In Review	Under review for approval
Released	Officially released, changes require ECO

Linking Requirements to Parts

To create traceability between requirements and implementing parts:

1. Open the requirement detail view
2. Navigate to the Relationships tab
3. Click + Add Relationship
4. Search for and select the part that implements this requirement
5. The relationship appears in the relationship list

This creates a "Satisfies" relationship showing which parts fulfill which requirements.

Viewing Traceability

From a requirement, you can see:

• Which parts are linked to it
• The relationship graph visualization

From a part, you can see:

• Which requirements it satisfies
• Impact when requirements change

Revision Control

Requirements follow the same Git-style revision control as parts:

Initial Creation

• New requirements are created in Draft state
• They can be edited freely while in Draft
• Initial revision is typically "-" (unassigned) until released

Making Changes to Released Requirements

Once a requirement is released:

1. Create an ECO that includes the requirement
2. The ECO creates a branch for your changes
3. Modify the requirement on the ECO branch
4. Submit the ECO for approval
5. When released, changes merge to main and revision increments

Best Practices

Writing Good Requirements

• Be specific: "System shall respond within 2 seconds" not "System shall be fast"
• Be testable: Include measurable acceptance criteria
• Be atomic: One requirement per statement
• Avoid implementation: Describe what, not how

Using Traceability

• Link every requirement to at least one implementing part
• Review where-used before changing requirements
• Update linked parts when requirements change

Organizing Requirements

• Use consistent naming conventions (e.g., "REQ-SYS-001")
• Group by type or subsystem using the Type field
• Use the Source field to track requirement origin

Next Steps

• Parts Management - Creating parts that implement requirements
• Change Orders - Managing requirement changes through ECOs
• Programs and Designs - Organizing requirements in designs
